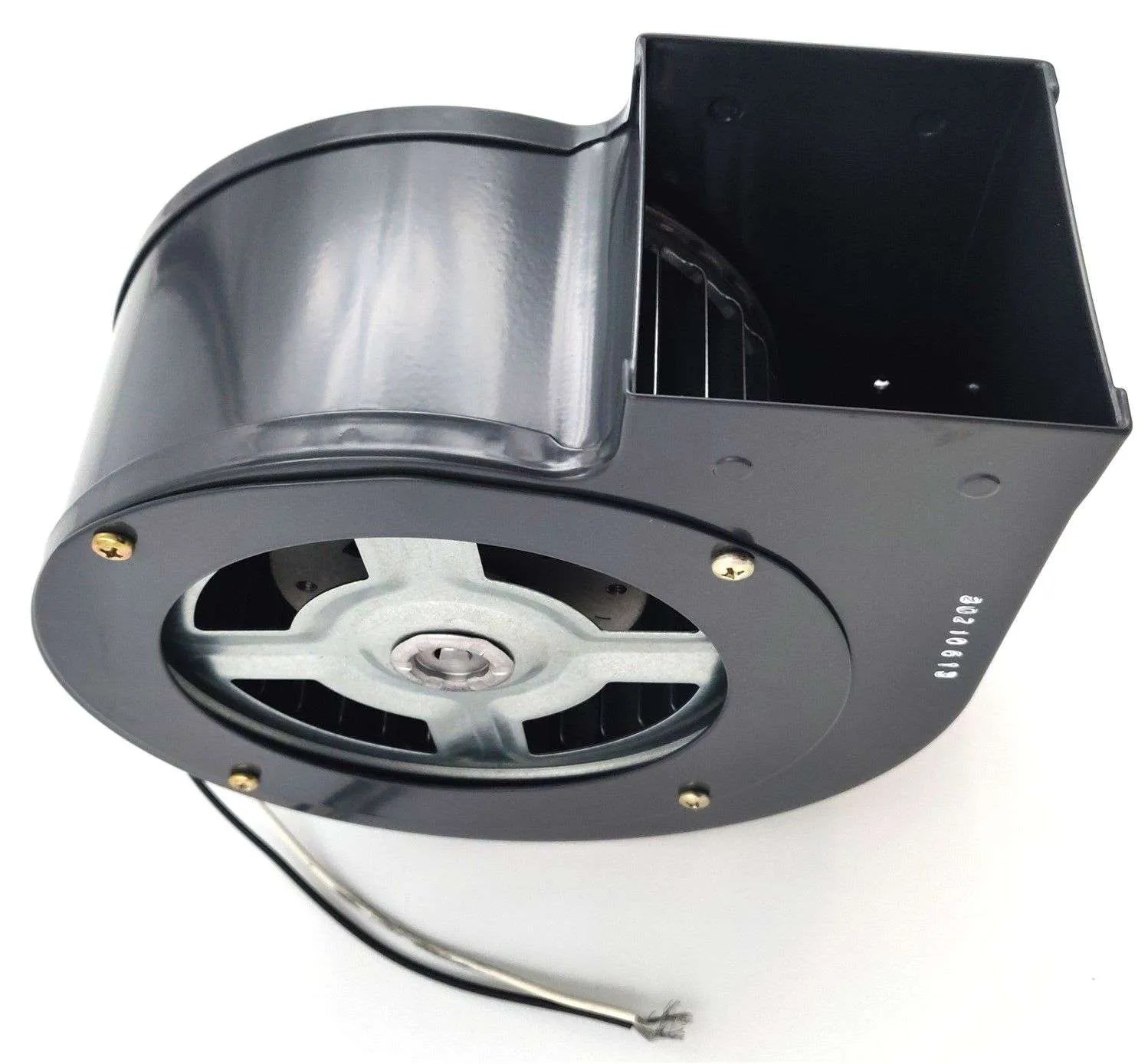

Dayton 1TDP4 is a 115V, 50/60Hz direct-drive blower assembly engineered for economical air delivery in general heating, cooling, ventilation, and component-cooling applications. It also uses a forward-curved blower wheel, cast aluminum end shields, and permanently lubricated ball bearings to support smooth, low-vibration operation.
Product Specifications:
- Part Number (MPN/SKU): 1TDP4
- Product Type: Direct-Drive Blower Assembly
- Voltage: 115V AC
- Frequency: 50/60 Hz (suitable for 50 Hz operation)
- Motor Type: PSC
- RPM: 1580 RPM
- Airflow (at 0.0″ static pressure): 71 CFM
- Amperage: 0.5 A
- Bearing Type: Permanently lubricated ball bearings
- Wheel Type: Forward-curved
- Mounting: All-position mounting
- Maximum Ambient Temperature: 104°F
Also Compatible With
- DAYTON 1TDP4
- FASCO 7063-3293
What’s Included:
- 1 x 115v – Blower Motor – Dayton 1TDP4
