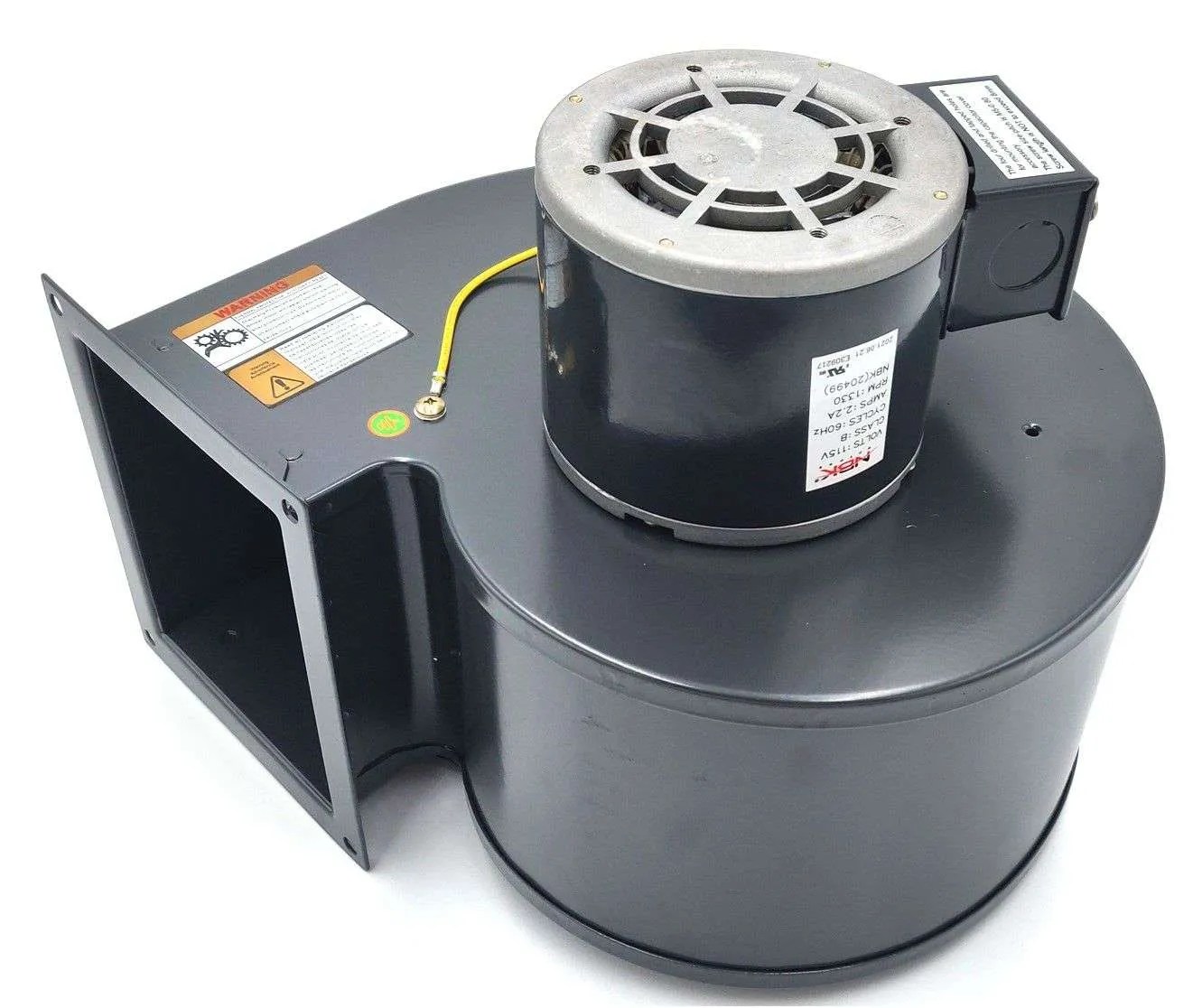

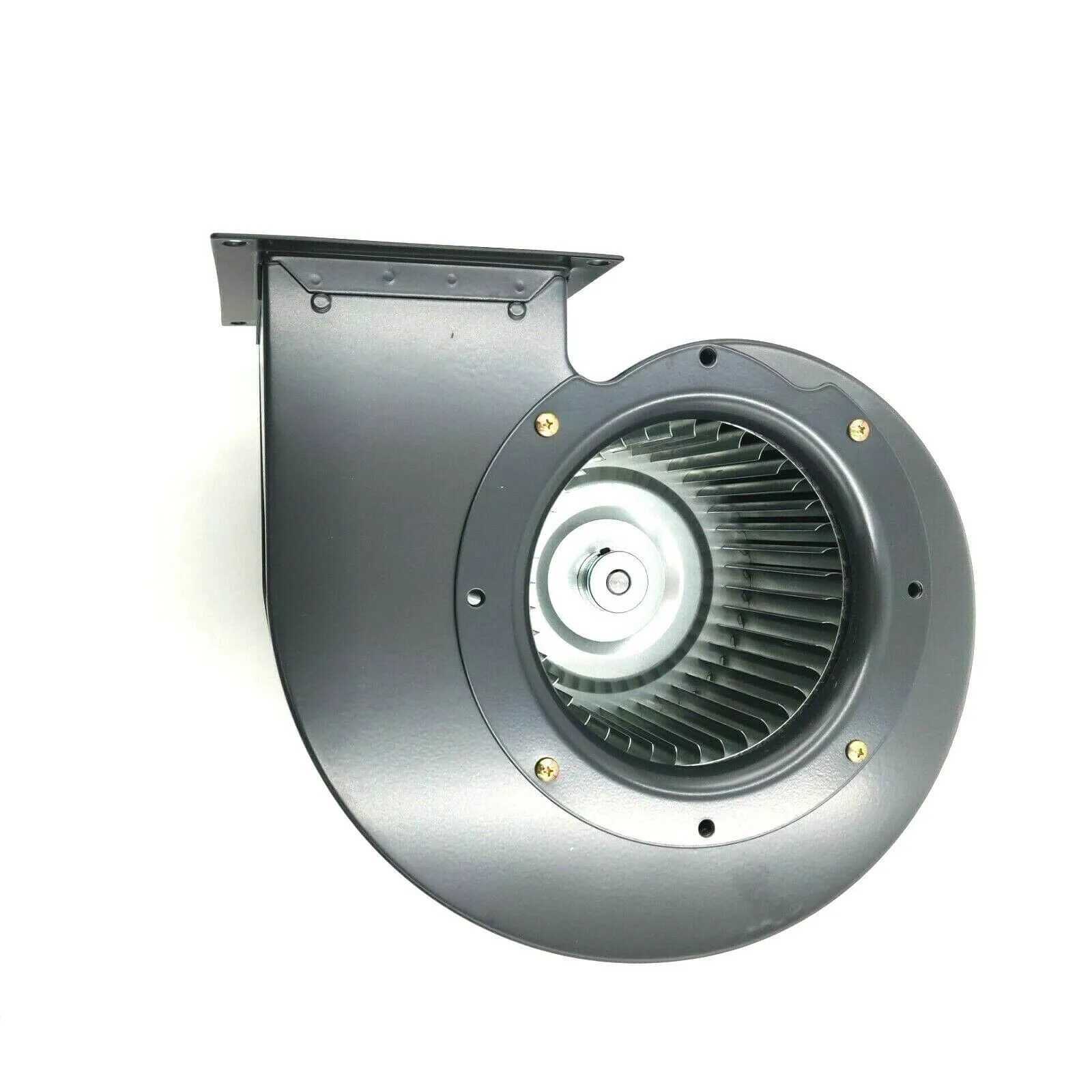

Dayton 1TDT2 is a 115V rectangular OEM blower assembly with a discharge mounting flange designed for steady airflow in ventilation and component-cooling applications. It features a forward-curved wheel, ball bearings, and all-position mounting, and is commonly used for cooling greenhouses, ventilating small buildings, wood/corn stoves, and electrical enclosures. Equivalent to Dayton 1TDT2 / 2C906 / 2C962 / 4C445 / 4C667 / 4YJ32 and Fasco 7008-6133.
Product Specification:
- Part Number (MPN): 1TDT2
- Type: Rectangular outlet blower assembly (with flange)
- Voltage: 115V AC
- Frequency: 50/60 Hz
- Phase: 1
- Motor Type: PSC (Permanent Split Capacitor)
- Amperage: 2.05A
- Horsepower (BHP): 1/10 HP
- Speed: Up to 1640 RPM
- Airflow: 549 CFM @ 0.000″ SP
- Max Static Pressure: 1.25 in. wc
- Rotation: CW (Clockwise)
- Bearing Type: Ball
- Motor Enclosure: Open
- Mounting Position: All-position
- Wheel Type: Forward-curved
- Blower Wheel Diameter: 6-1/4 in
- Blower Wheel Width: 3-3/4 in
- Inlet Diameter: 5-5/16 in
- Outlet Shape: Rectangular (flanged)
- Outlet Size: 5-1/4 in (W) √ó 4-1/4 in (H)
- Overall Size: 10-7/16 in (D) √ó 9-3/16 in (W) √ó 11-1/8 in (H)
- Lead Length: 13 in
Also Compatible With:
- Equivalent to the Dayton 1TDT2, FASCO 7008-6133, 2C906, 2C962, 4C445, 4C667, 4YJ32
What’s Included:
- 1 √ó Dayton 1TDT2 blower assembly
