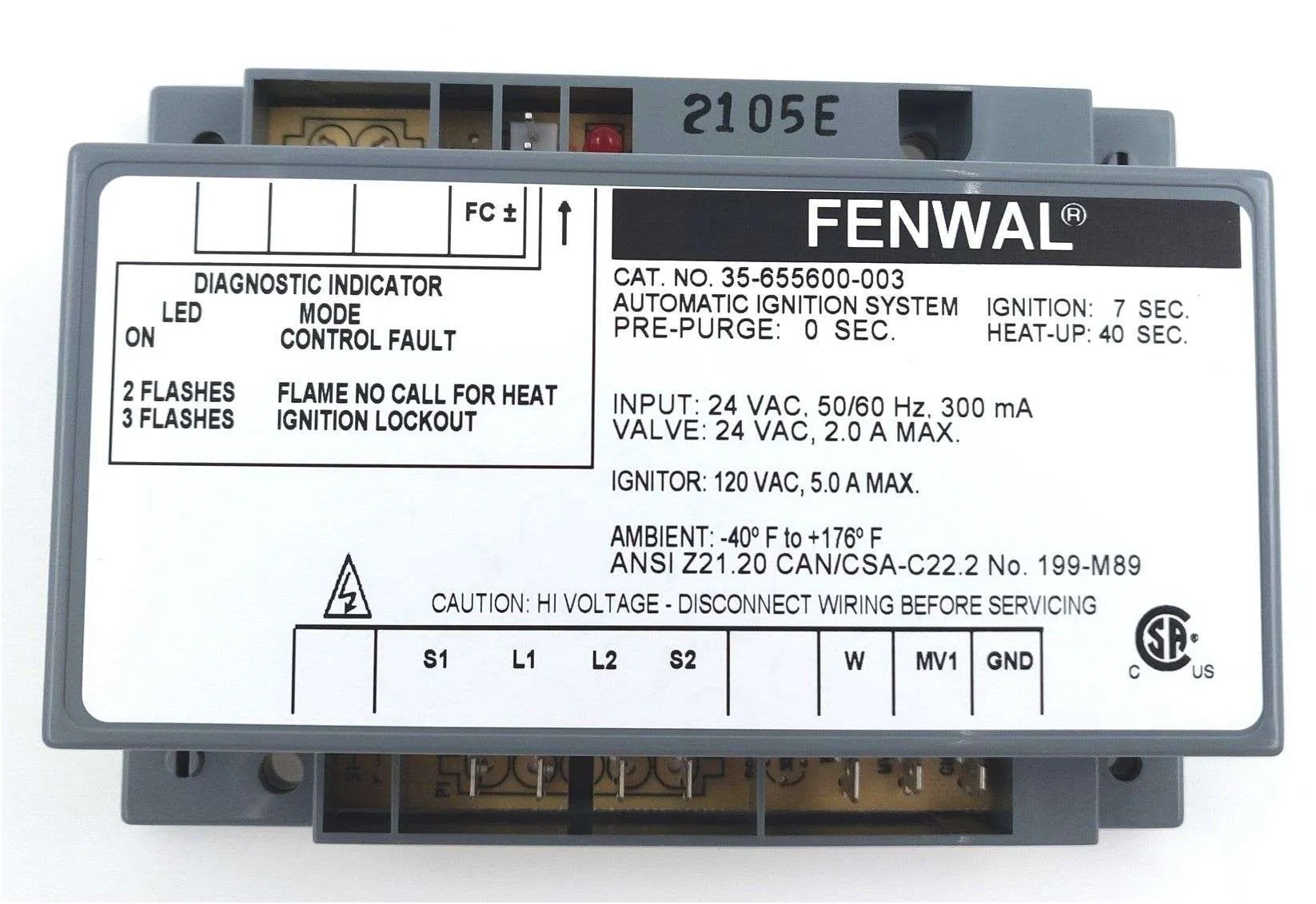

FENWAL – 35-655600-003 – IGNITION MODULE

Fenwal 35-655600-003 is a 24V hot surface ignition (HSI) control module that manages the ignition sequence and flame sensing for compatible gas-fired equipment. This model is a single-try ignition control with a 7-second trial-for-ignition (TFI) and built-in LED diagnostics.

Product Specifications:

• Part Number (MPN): 35-655600-003

• Type: Ignition Module / Ignition Control

• Ignition Type: Hot Surface Ignition (HSI)

• Control Input Voltage: 18‚Äì30 VAC, 50/60 Hz (Class 2 transformer)

• Voltage (listing): 24V

• Ignition Attempts: Single try

• Pre-Purge / Inter-Purge: 0 sec / 0 sec

• Gas Valve Output Rating: 2.0A max @ 24 VAC

• Hot Surface Igniter Output Rating: 5.0A max (HSI output)

• Flame Sensitivity: 0.7 ¬µA minimum

• Operating Temperature Range: -40¬∞F to 176¬∞F (-40¬∞C to 80¬∞C)

• Diagnostics: LED indicator

Also Compatible With:

Fenwal 35-655600-003

(Gas furnaces, Boilers, Commercial cooking, Water heaters, and other gas-fired appliances)

What’s Included:

• 1 √ó Fenwal 35-655600-003 Ignition Module
